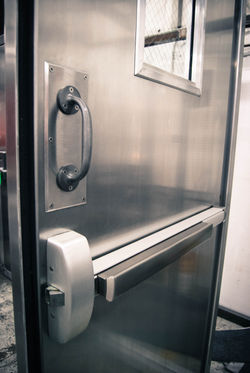

Panic Bar

Panic Bar



With our knowledgeable and trained staff and over twenty years of industry experience, you can be sure that your doors will be built to the highest quality.

Our offshore marine grade aluminum doors are designed and engineered to withstand even the most extreme environments. We understand the need for durability in your sector, and our doors come in types that are heavy duty high traffic doors, or lighter duty lower traffic doors. Our interior and exterior aluminum doors can be used for, but are not limited to, living quarters or other offshore needs, and other marine applications and they are designed to be versatile. All types of our aluminum doors can use surface mounted hardware or mortise type hardware. Unlike doors made of other material, aluminum doors do not need to be painted repeatedly to be protected from the elements. Aluminum doors are highly corrosive resistant, making them the best choice for harsh environments. Our doors can be made from a variety of thicknesses to meet your specifications. These aluminum doors are swing type doors that can either have a reverse or non-reverse swing.



Some optional and additional features include:



  • Door Closer Types: Hydraulic, or door chain

  • Hardware Latch Types: Panic devices, freezer style, double lever, or dog latches

  • Window Types: Wire inserted glass, lexan, or laminated safety glass



  • Heavy duty aluminum hinges

  • Window polyurethane core insulation

  • Heavy duty extruded aluminum frames



Accessories:



  • Kick Plates

  • Pull Handles

  • Dead Bolts

  • Restroom vacancy indicators



MATERIAL SPECS FOR ALUMINUM DOORS



The exterior frames, interior frames, and hinges are made of 6061-T6 aluminum (6061-T6 combines relatively high strength, good workability, and high resistance to corrosion.)



The door skins and internal channels are made of 5052-H32 aluminum. The exterior skin is 3/16" thick and the internal vertical channel is 3/16" thick. The inner skin and (3) internal horizontal channels are 1/8" thick. (5052-H32 is excellent in its resistance to corrosion, especially in a marine environment; and has good workability. It is a higher strength than 1100 or 3003 grade and has good finishing characteristics.



The window is 1/4" wire glass and the door insulation is 1-1/2" foam board.
